Product Details
＋

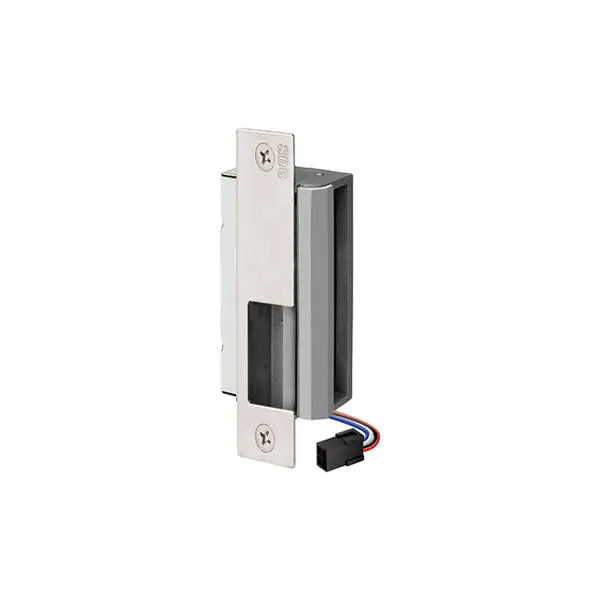

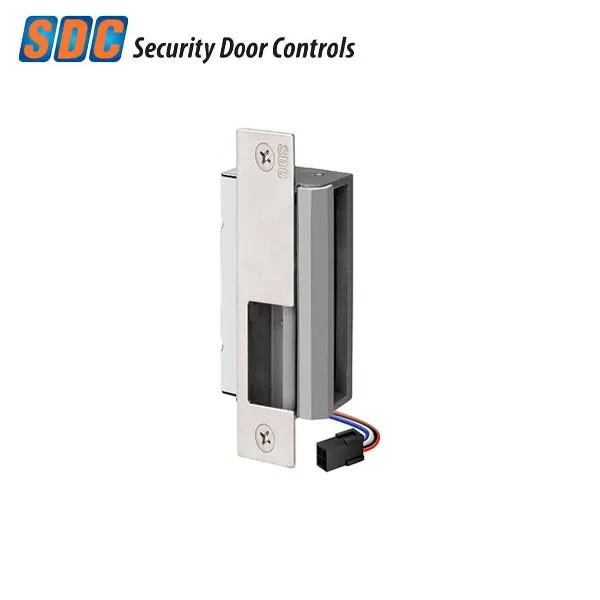

SDC’s 55 series 3/4” latchbolt electric strikes are heavy duty, designed for installation in hollow metal frames for access control of cylindrical locksets, mortise locksets with or without deadbolts and mortise exit devices. 55 series strikes accept 3/4” throw latchbolts and up to 1” throw deadbolts.
Features:
- All Stainless Steel Corrosion Resistant
- Field reversible for failsecure or failsafe operation
- Up to ¾” Latchbolt and 1” Deadbolt
- No Centerline Relocation
- 1/8” Horizontal alignment adjustment
- Factory tested 2500 lbs. exceeds 1,000,000 cycles
- UL tested 1500 lb Static strength, 70 ft-lb Dynamic strength
- Tamper Resistant
- Non-handed
- Plug-in pig tail connectors
Specifications:
| Construction: | Stainless steel parts with durable die case body |
| Application: | Mortise locksets without deadbolt, Mortise exit devices with or without deadlatch, Deadlatch located below the latchbolt |
| Compatible Locks: | Accurate, Arrow, Best, Corbin Russwin, Dorma, Falcon, Marks, PDQ, Sargent, Yale |
| Function: | No deadbolt |
| Dual Voltage: | 12/24 VDC ± 10% |
| Current: | 600 mA @ 12 VDC 300 mA @ 24 VDC |
| Monitoring Status: | SPDT 5 Amps @ 30 VDC Resistive |
| Fits Latch Bolt: | 5/8'', or up to 3/4'' with 1/8'' door gap |
| Faceplates: |
Mortise Locksets without Deadbolt & Mortise Exit Devices - Deadlatch Below |
| Finishes: | Satin Stainless Steel - 630 |
| Certifications: | ANSI/BHMA A156.31 Grade 1, UL 10C, UL 1034 |
| Warranty: | 5-Year Manufacturer Warranty |
