Features:

• Output rating up to 1200 W within 80 V/ 60 A (models 9115/9115-AT) or 150 V/ 30A (model 9116)
• Multi-ranging operation
• Compact, high density, 1U rack mount form factor
• High programming and readback resolution
• Adjustable voltage slope
• Sequence programming
• Save and recall up to 100 instrument settings
• Analog interface with control and monitoring functions
• Remote sense

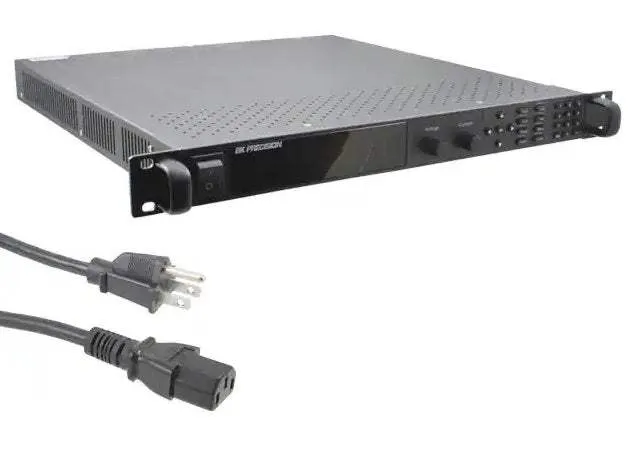

The 9115/B Series model can replace several supplies on your bench or in your rack. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current limits. For benchtop applications, this series provides a numerical keypad for direct data entry along with convenient cursors and analog-style knobs to quickly make incremental voltage or current changes. Systems integrators benefit from the standard USB (USBTMC-compliant), RS232, RS485, and LAN (9117 only) interfaces supporting SCPI commands. GPIB is available as an option for select models. The 9115/B-AT provides automotive power test waveforms compliant to DIN 40839 and ISO 16750-2:2012(E) standards that can simulate common test conditions for electrical and electronic devices installed in automobiles.
