Product Description
-

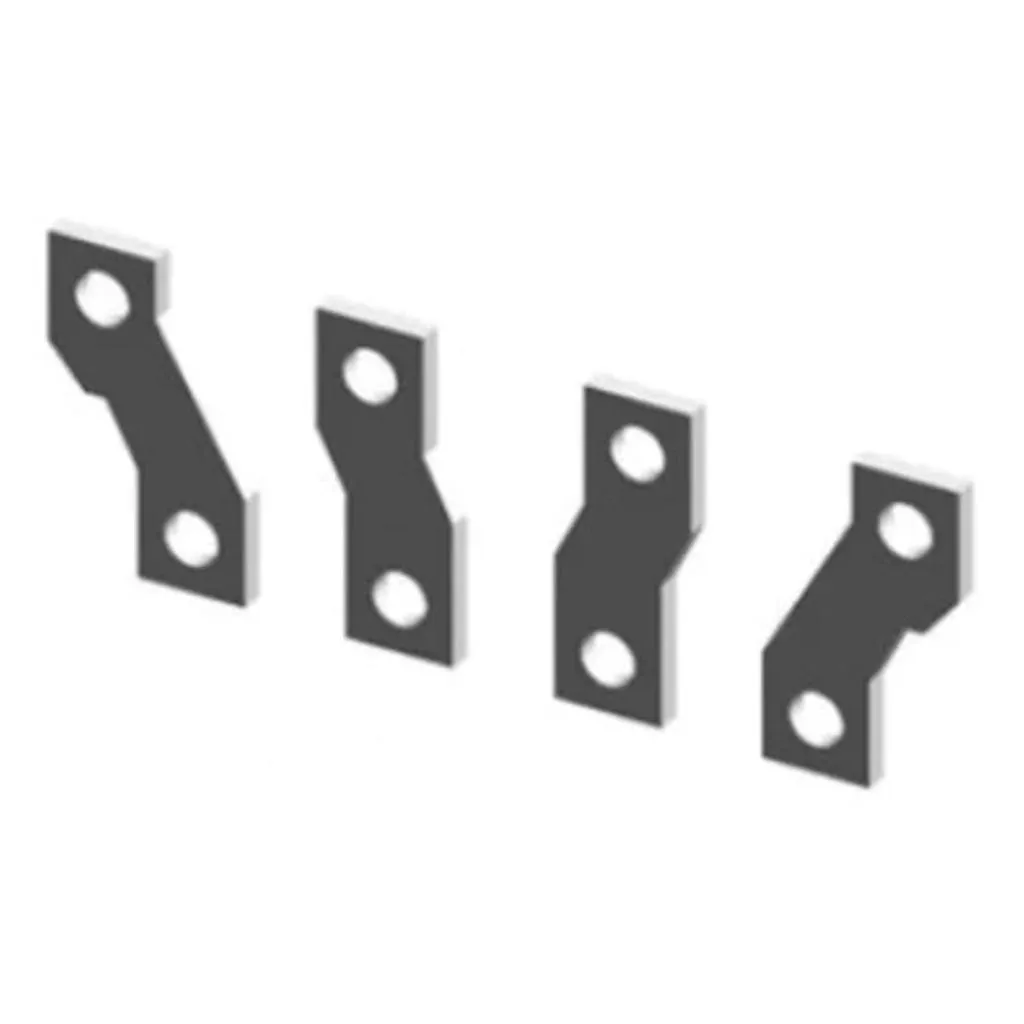

These accessories are spreaders for 3 poles Compact NSX 100/160/250 and EasyPact CVS 100/160/250
-
They are screwed to the circuit-breaker terminals to increase the pitch between poles from 35mm to 45mm
-
The rated current is up to 250 A
-
These spreaders are supplied with flexible interphase barriers for insulation reinforcement
-
They are sold by set of 3 parts
Product Specification
|
Brand |
Schneider |
|
Model |
EasyPact EZC |
|
Product Code |
EZASPDR4P |
|
Product Type |
Spreaders |
|
Color |
Silver |
|
No Of Poles |
4 Pole |
|
Accessory / Separate Part Category |
Connection Accessory |
|
Quantity Per Set |
Set Of 4 |
|
Performance Level |
B F H N |
|
Rated Current |
100 A |
|
Connection Pitch |
35 mm |
|
Warranty |
As Per Manufacturer Terms and Condition |
