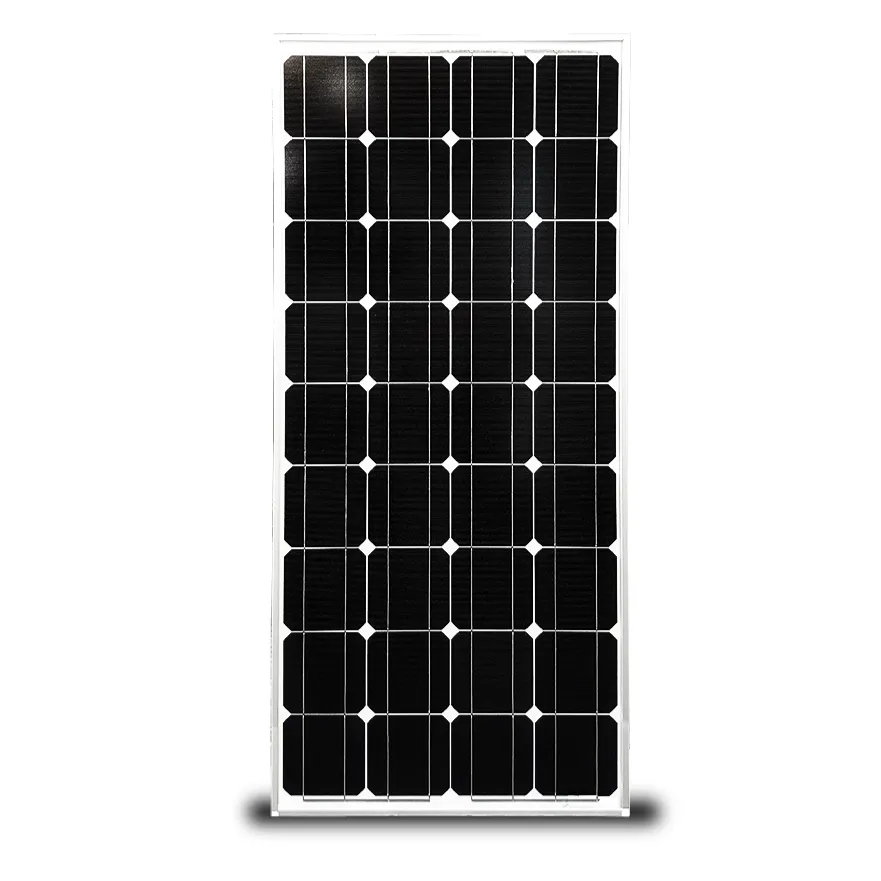

Description
Efficiency: 200 watt solar panel efficiency can be calculated from the MPPT (Maximum Power Point Tracking) value of the solar panel, and it is up to 19.32%. Its advanced method for detection and protects the solar system more effectively.
Generation: A 200 watt, 12 volt solar panel can generate and save an average of 228 units per year (depending on the season).
Design: It is designed with new generation PERC cell technology which is better than other cell technology and also has higher efficiency than conventional PV modules. Mono PERC cells perform excellently in low light and cloudy conditions.
Performance: Performs better in low light conditions as well as in high temperature.
Protection: Its additional feature include heavy-duty silver anodized aluminium frame with a twin-wall profile for long-lasting panels. 100% EL inspection before and after lamination to ensure micro crack free solar PV modules. The aluminium frame ensures that the modules can withstand wind loads up to 3600Pa and snow loads up to 5400Pa.
Special Features
- Low temperature co-efficient.
- Positive power tolerance of 0~ 3%.
- Potential induced fall (PID) resistance.
- PID resistant 5BB cells and encapsulates.
- Higher efficiency than traditional PV modules.
- Designed with new generation PERC cell technology.
- High reliability against extreme environmental conditions.
- Excellent performance in low light conditions and cloudy weather.
Application for 200W Solar Panel
It is best to use for existing inverter batteries, small electrical appliances, solar system etc. 200 watt mono PERC solar panel is used mostly in below mentioned applications:
- Off grid solar system
- On grid Solar System
- Hybrid Solar System
- Solar Water Pump
Technical Specification
|
Particulars |
Description |
|
Maximum Power |
36 cell 200W |
|
Number of Cells |
36 ( 9*4 ) |
|
Open Circuit Voltage ( VOC) |
25.26V |
|
Short Circuit Current |
9.95A |
|
Voltage at Maximum Power |
12V |
|
Current at Maximum Power |
9.5A |
|
Module Efficiency |
20.05% |
|
Operating Temperature |
-40°C to 85°C |
|
Maximum System Voltage |
1000V DC / 1500V DC |
|
Maximum Series Fuse Rating |
15A |
|
Front Cover |
Low Iron, Tempered Glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP67, IP68, 3 Diodes |
|
Dimension |
1485x670x35 mm |
|
Weight |
11.2KG |
