Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 1071553 |
| Body Style | Rectangular |

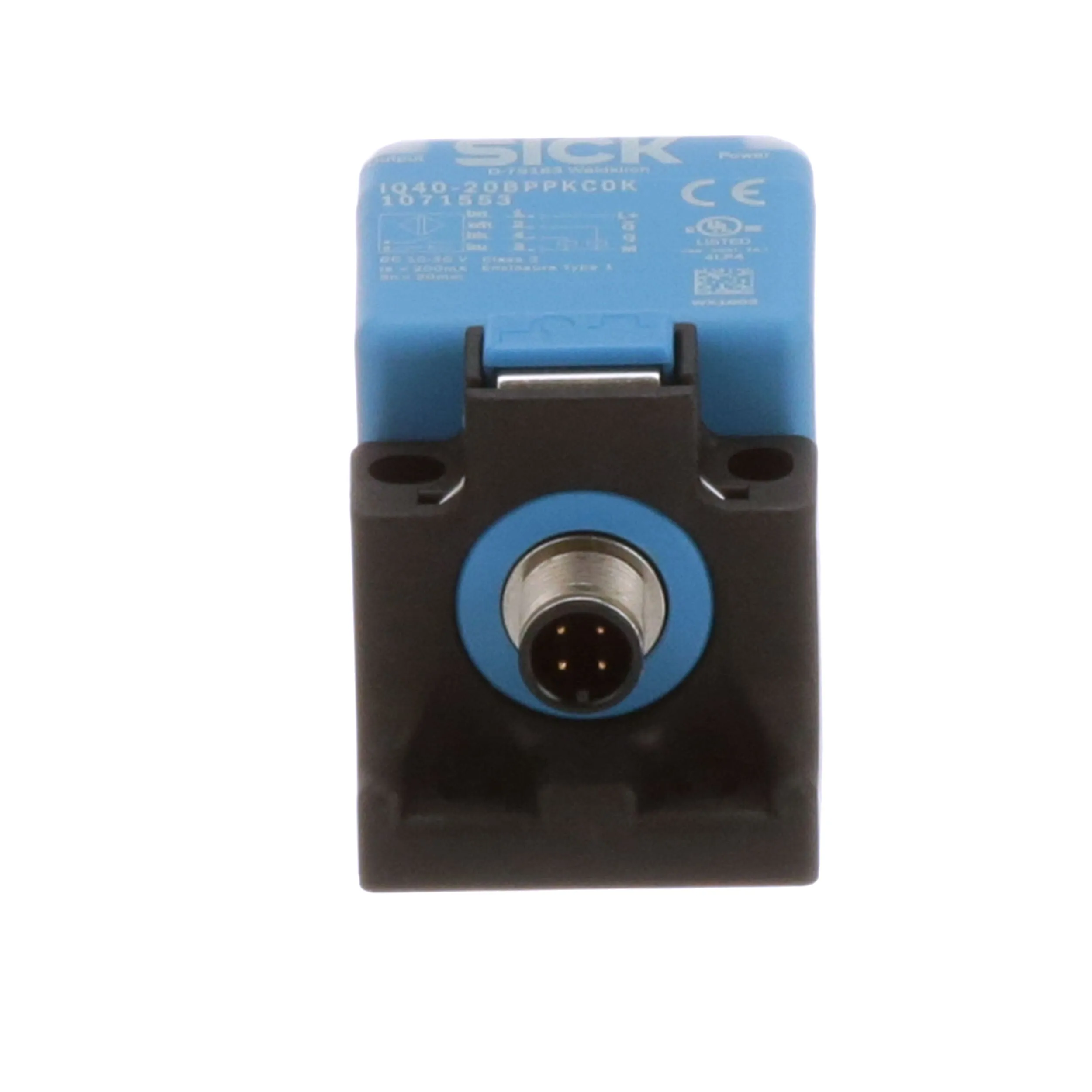

| Connection Type | M12 4-Pin |
| Current Consumption | ≤ 20 mA (without load) |
| Dimensions | 40mm x 40mm x 66mm |
| Dropout Voltage | ≤ 2 V |
| Frequency, Switching | 0.15 kHz |
| Housing Material | Plastic, PA 66 |
| IP Rating | IP67 ; IP68 ; IP69K |
| Measurement Range | 20 mm |
| Measuring Range | ≤ 20 mm |
| Mounting Type | Flush |
| Output | PNP-NO/NC |
| Primary Type | Inductive Proximity Sensors |
| Series | |
| Shielding | Shielded |
| Supply Voltage | 10-30 VDC |
| Type | Inductive |
