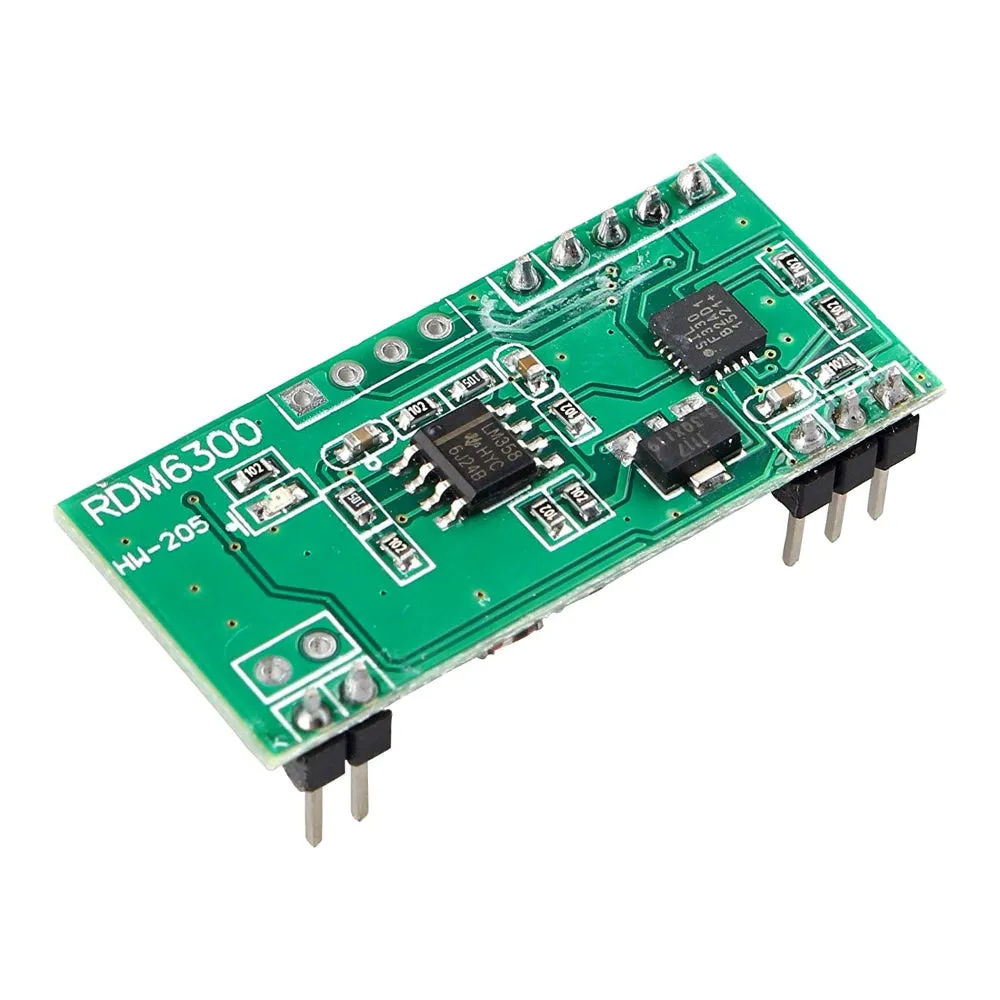

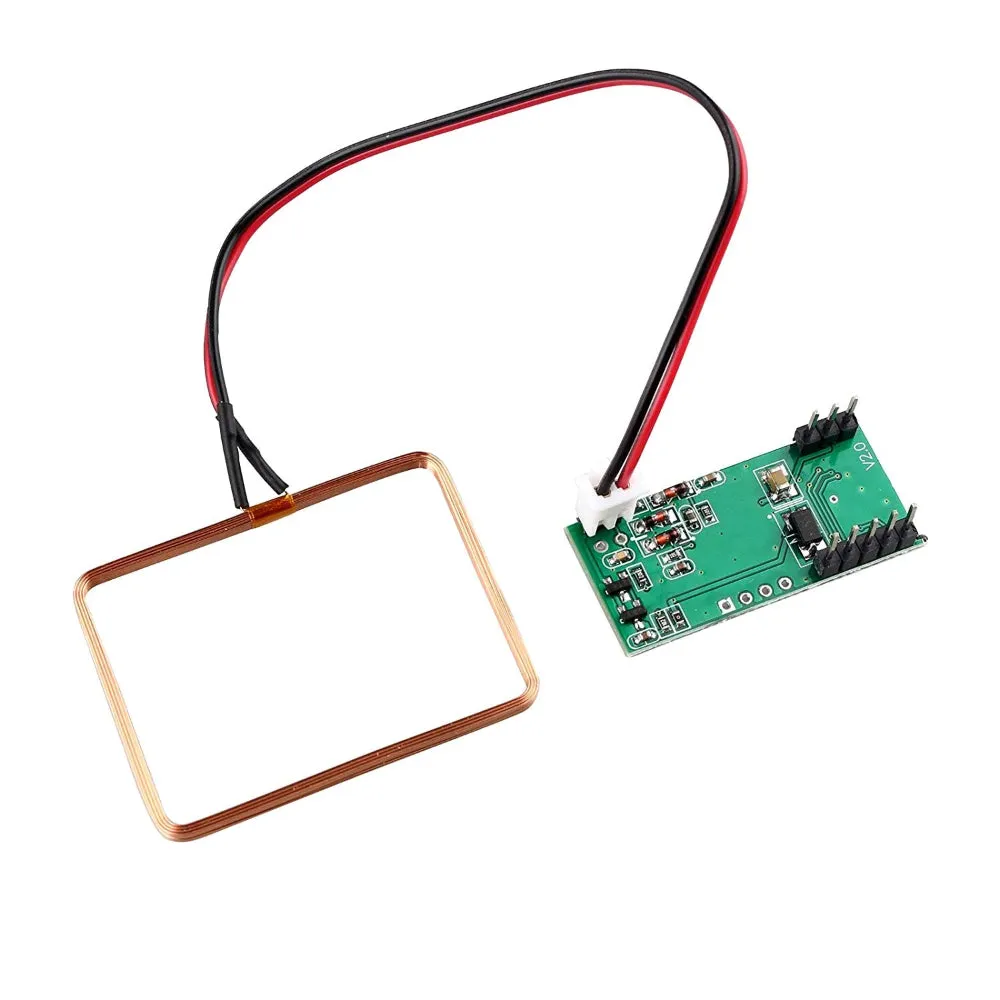

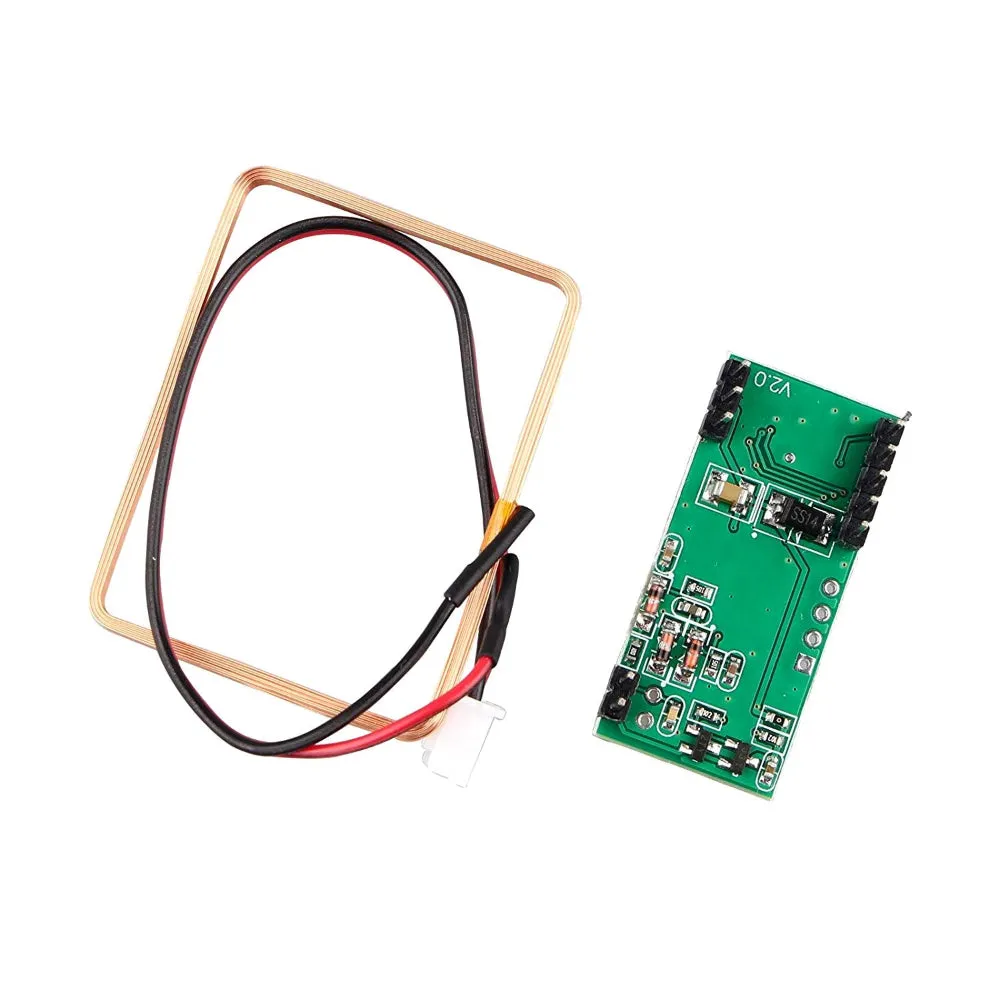

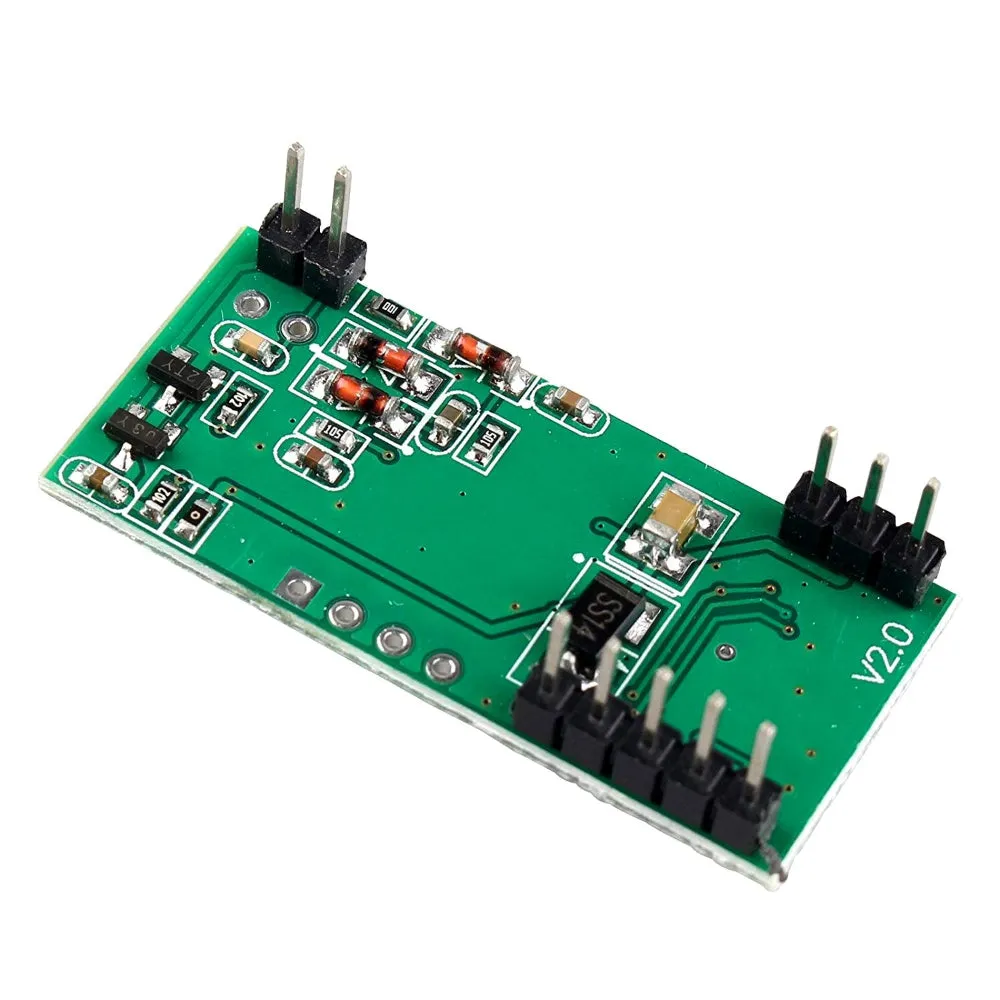

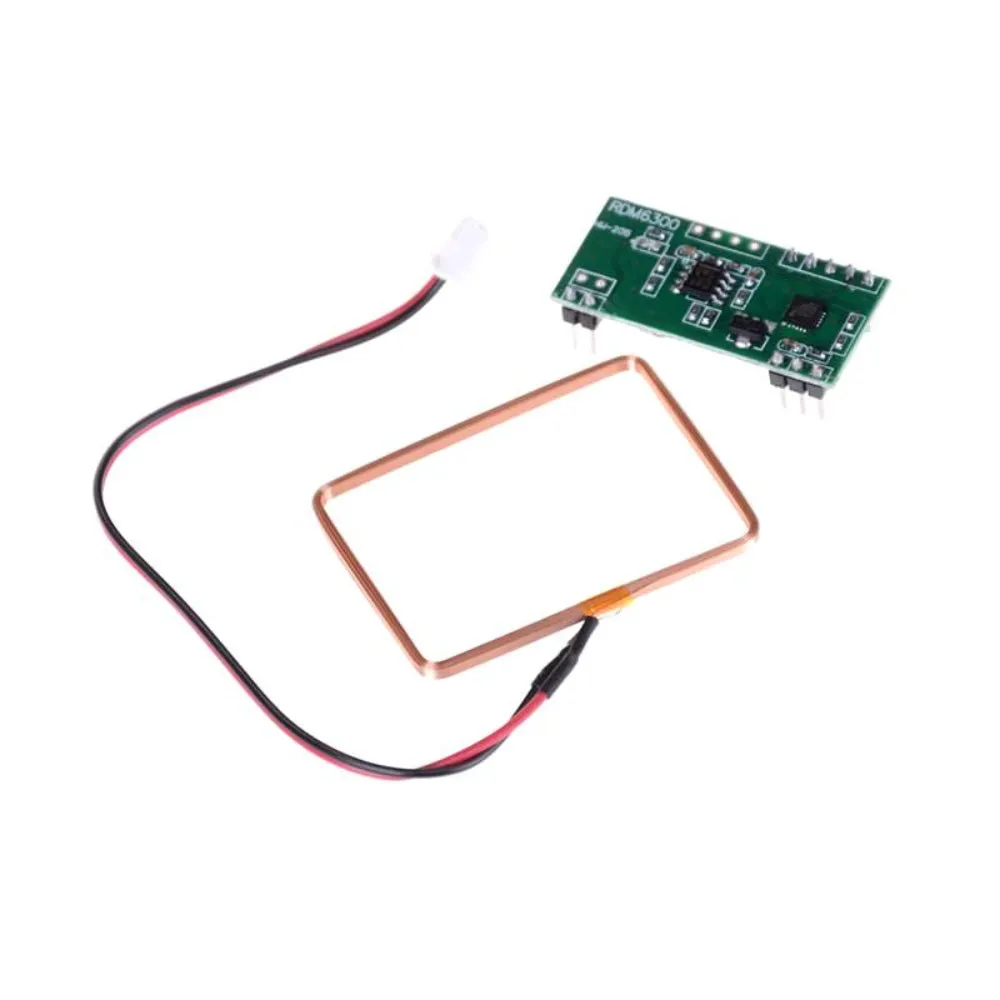

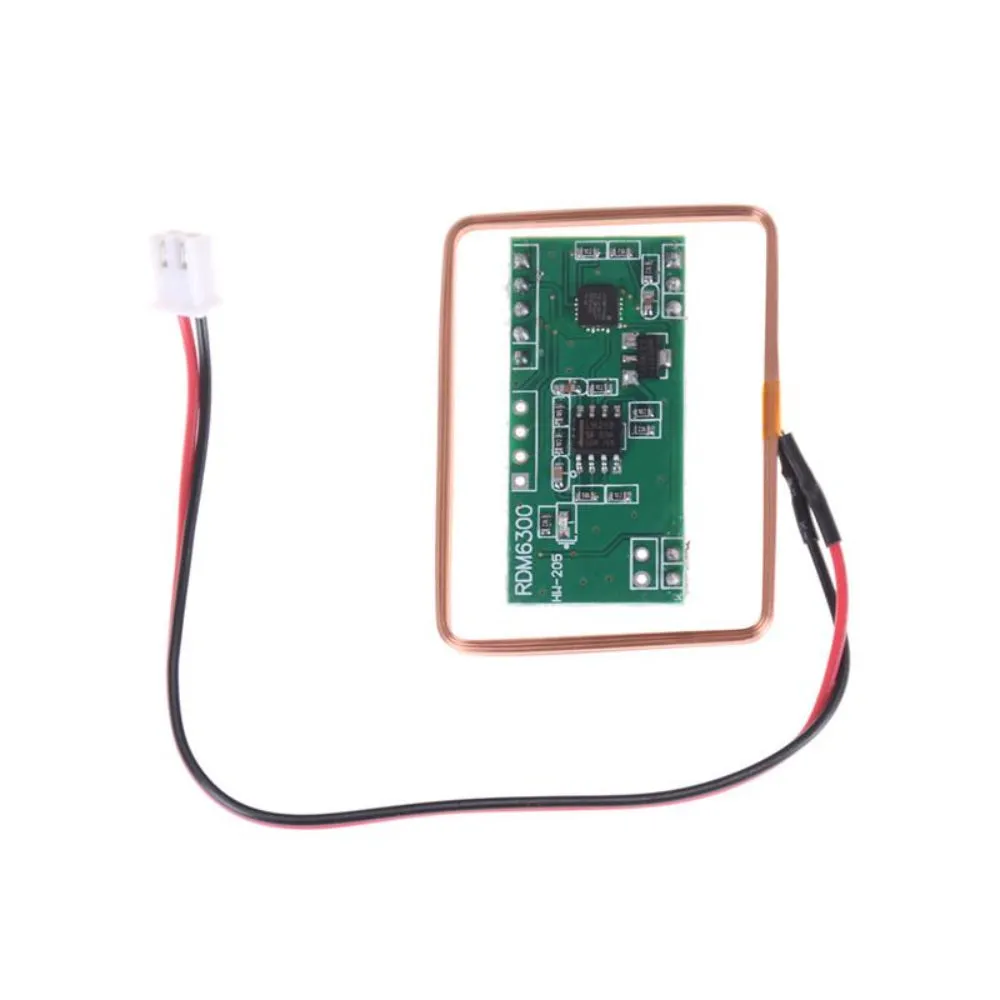

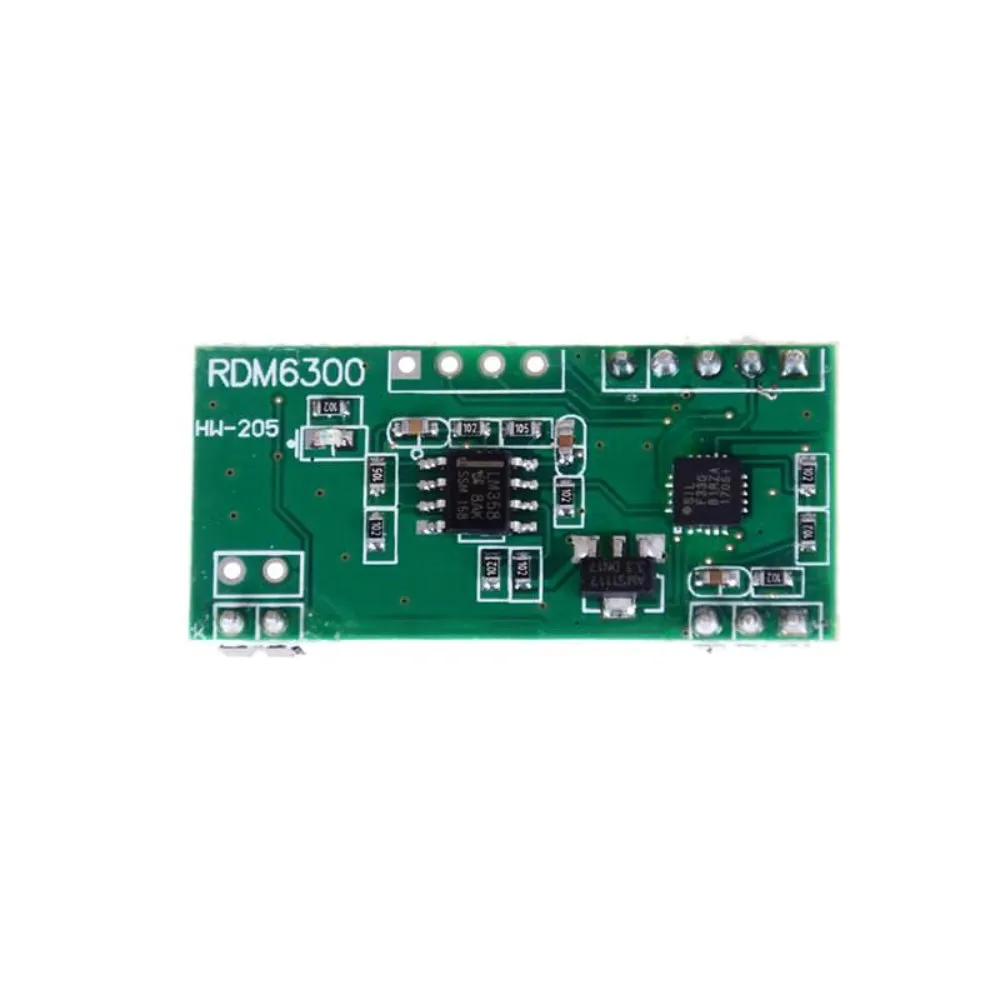

RDM6300 125KHz EM4100 RFID Card ID Reader Module

RDM6300 125KHz EM4100 RFID Card ID Reader Module is designed for reading code from 125KHz card compatible read-only tags and read/write the card. It can be applied in office/home security, personal identification, access control, anti-forgery, interactive toy and production control systems etc.

Technical Details

Model: RFID Reader
Frequency: 0.125 MHz
Baud Rate: 9600 bps
Interface: TTL level RS232 format
Voltage: DC 5V ( /- 5%)
Current: <50mA
Distance: 20-50mm
Operating Temp: -10°C to 70°C
Storage Temp: -20°C to 80°C
Humidity: 0-95%
Wiring Size: 46x32x3mm
PCB Size: 38.5x20mm
Weight: 8g

Features

Max. Distance: Up to 150mm
Decoding time: Less than 100ms

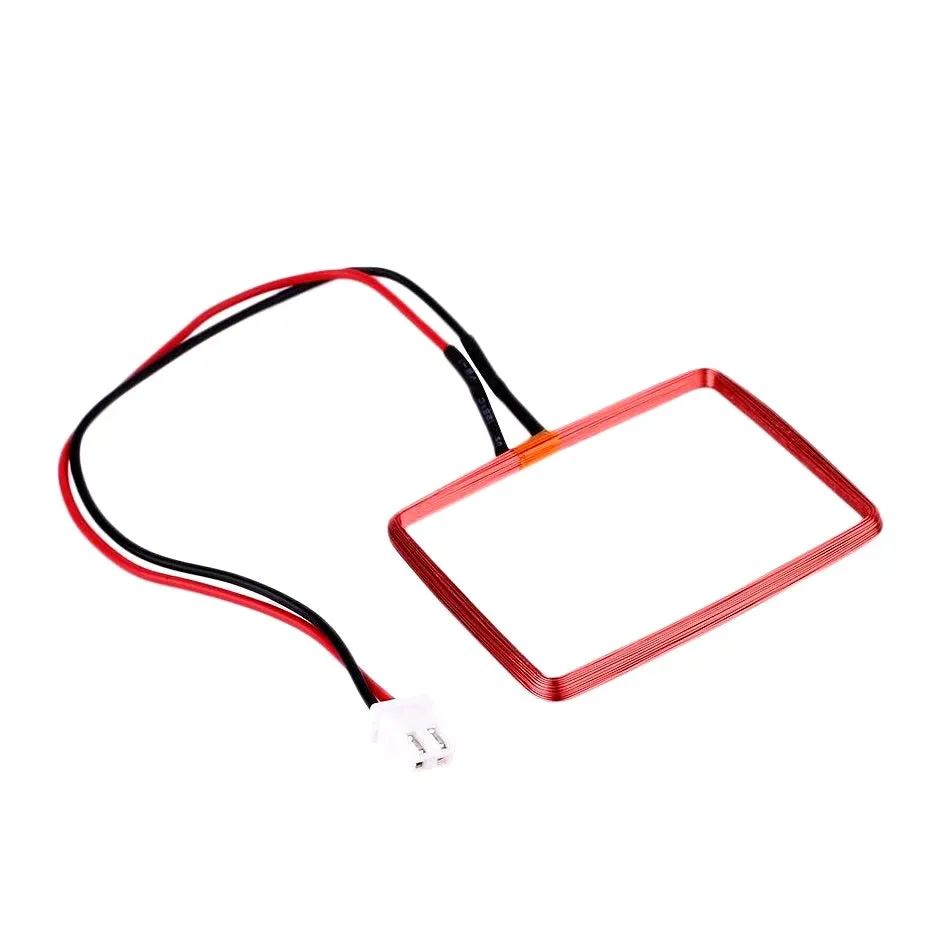

Supports external antenna
UART interface
EM4100 compatible (read-only or read/write)
Small outline design

Applications :

Access Control: Used for secure entry in buildings or rooms with RFID cards.
Contactless Payments: Enables fast and secure payments through RFID-enabled cards.
Inventory Management: Tracks assets or goods using RFID tags for efficient inventory control.
Attendance Systems: Monitors attendance in schools, workplaces, or events with RFID cards.
Public Transport: Facilitates ticketing and fare collection in transportation systems.
Library Systems: Streamlines book checkouts and returns with RFID tags for easy tracking.
