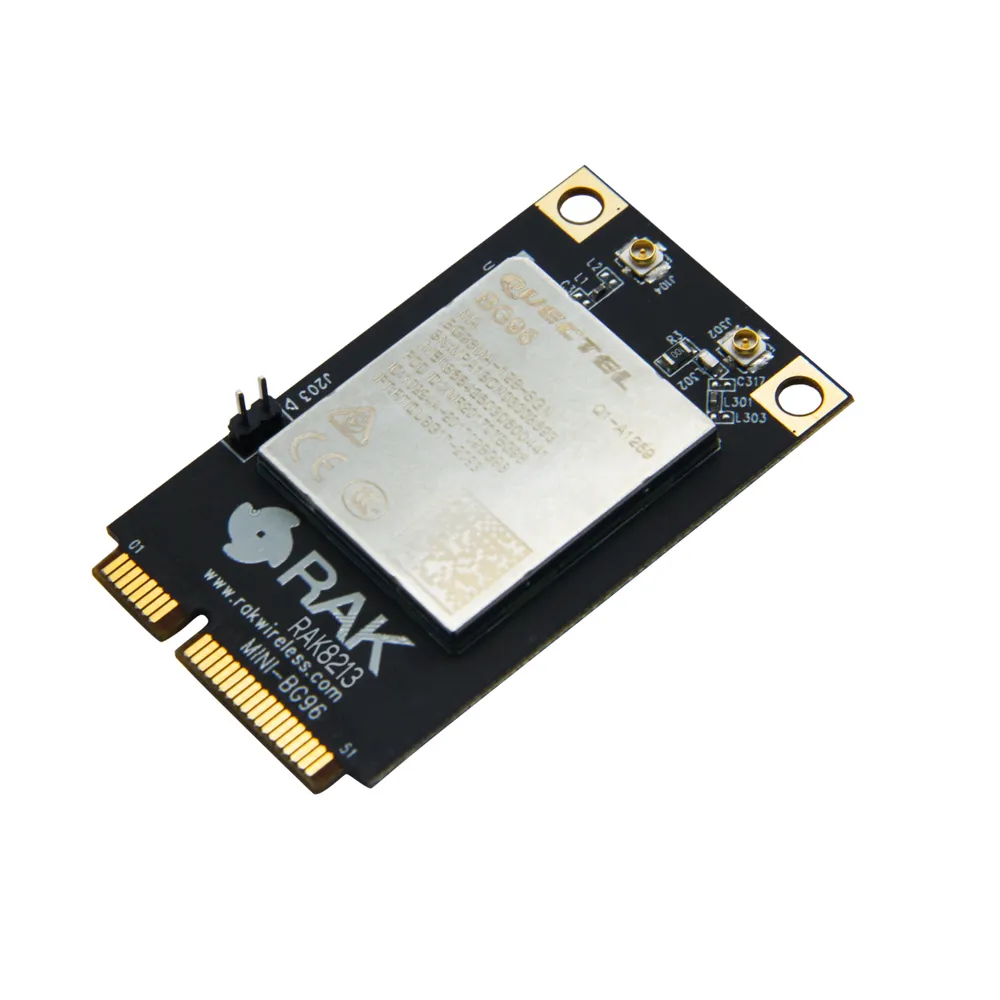

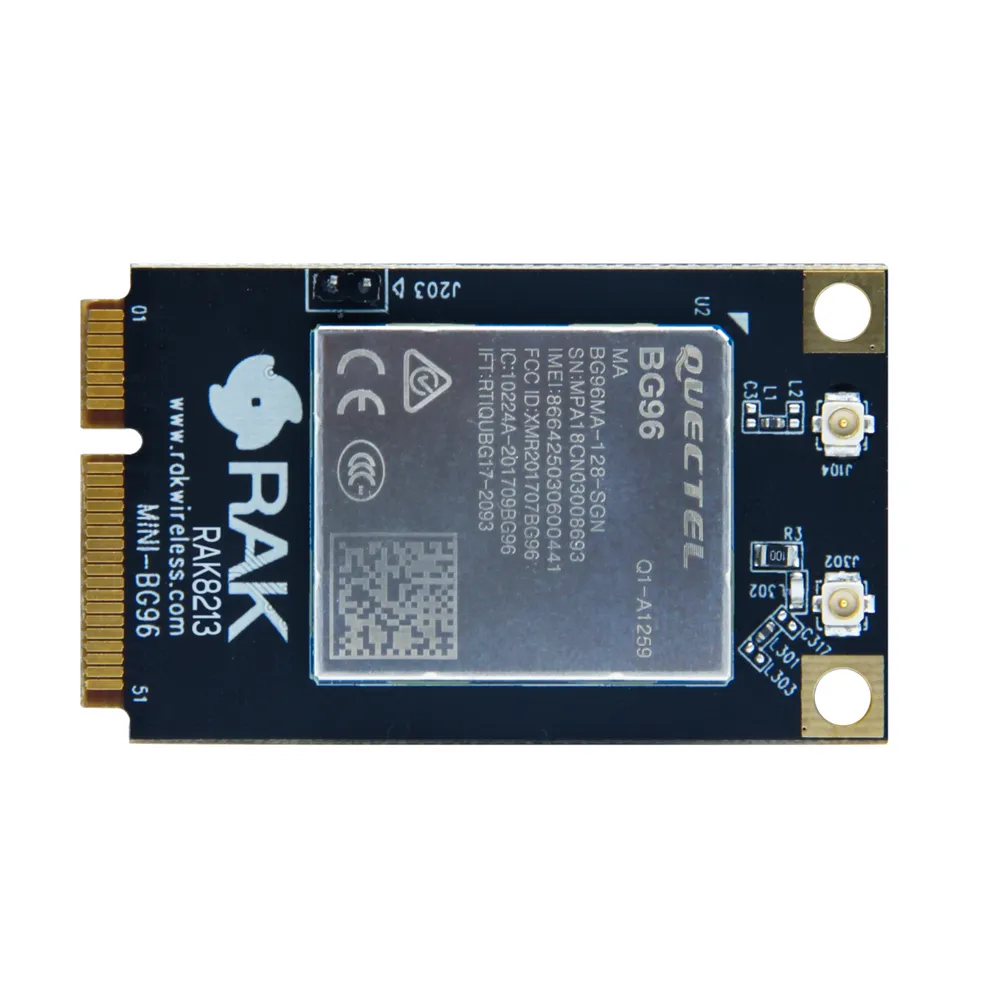

The RAK8213 is a LTE Cat M1/Cat NB1 module based on the Quectel BG96 with a standard PCI Express® MiniCard form factor (Mini PCIe). Supports EGPRS network at the same time, can offer the highest data rate of 300Kbps downlink and 375Kbps uplink.
RAK8213 built-in GNSS module can support GPS, GLONASS, BeiDou/Compass, Galileo, QZSS, integrated GNSS greatly simplifies product design and provides faster, more accurate and more reliable positioning.
The module has a variety of power modes that can meet most of the application scenarios. And provides pin-to-pin compatibility with the Quectel LTE module EG91/EG95, Cat NB1 (NB-IoT) module BC95, UMTS/HSPA module UG95/UG96 and GSM/GPRS module M95.
Rich Internet protocol, industry-standard interfaces (USB/UART/I2C/Status indicators) and rich features (applicable to Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux drivers for Linux and Android) Modules that extend applicability are suitable for a wide range of M2M applications such as wireless POS, smart metering, and tracking.
Key Benefits
- LTE Cat. M1/Cat.NB1/EGPRS module with Mini PCIe form factor, optimized for M2M and IoT applications.
- Ultra-low power consumption.
- USB Drivers and support 2.0 high speed interface.
- Quectel Enhanced AT commands.
- Robust mounting and interfaces
Interface
- USB 2.0 with High Speed up to 480Mbps
- UART × 1
- PCM* × 1
- (U)SIM Interface × 1(One Micro SIM on board by default)
- NETLIGHT for Network Status Indication
- STATUS for Power ON/OFF Indication
- Main and GNSS Antenna Interfaces
Applications
- Netbooks, notebooks
- Remote monitoring
- Onboard
- Wireless POS
- Smart meter reading
- Wireless routers, switches
