Part No. 0600 9761
- Suitable for use with Testo 300, 320, 330 & 340 Analysers (not suitable for Testo 310)
- Easy probe shaft replacement via quick-change click system
- Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
- Integrated dirt filter protects instrument and sensors
- Integrated thermocouple probe for temperature measurements up to 500 °C

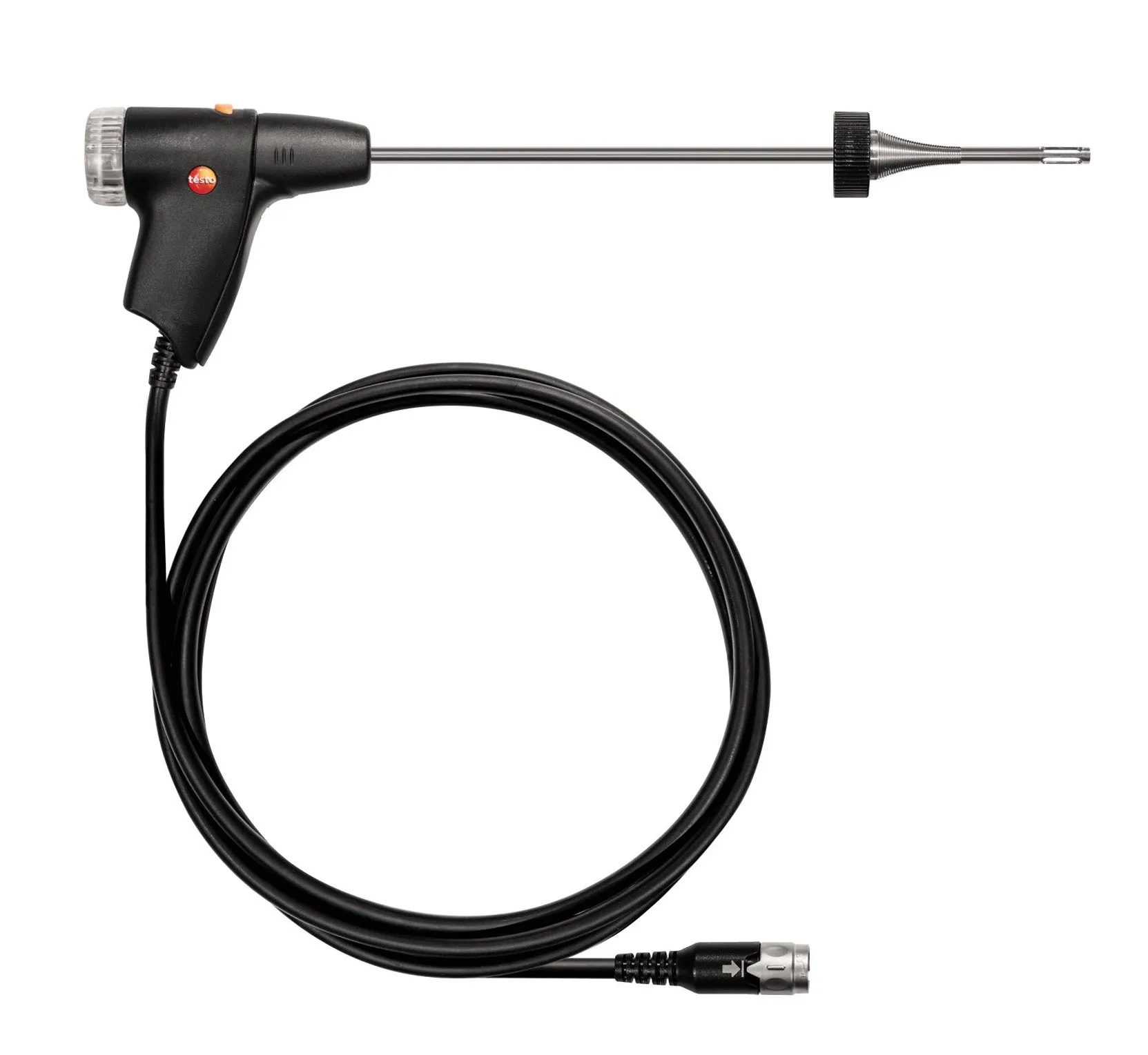

TÜV-tested modular flue gas probe with 300 mm long probe shaft including dirt filter and thermocouple. The quick-change click system enables quick, flexible replacement of the probe shaft.
Details
Product Description
The TÜV-tested modular flue gas probe with 300 mm long probe shaft features a quick-change click system on the handle, which enables easy replacement of the probe shaft. The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperature measurement up to 500 °C. Flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock. In addition, a dirt filter protects the instrument and its sensors from contamination.
Delivery Scope
Modular flue gas probe 300 mm including dirt filter, cone for attachment, thermocouple NiCr-Ni Tmax 500 °C and hose 2.2 m.
Technical Data
General technical data
Length probe shaft 300 mm
Cable length 2.2
Diameter 6 mm
Temperature maximum 500 °C
