Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Body Style | Cylindrical |
| For Use With | Level Measurement |
| Function | Non-contact Level Measurement |
| Measurement Range | 0.66-24.6 ft |
| Mounting Type | NPT 2 in |
| Output | 4-20 mA |
| Sensing Mode | Ultrasonic |
| Series | |
| Special Features | Explosion Proof |
| Supply Voltage | 18-28 VDC |
| Termination | Cable |
| Type | Level Transmitter |
Overview

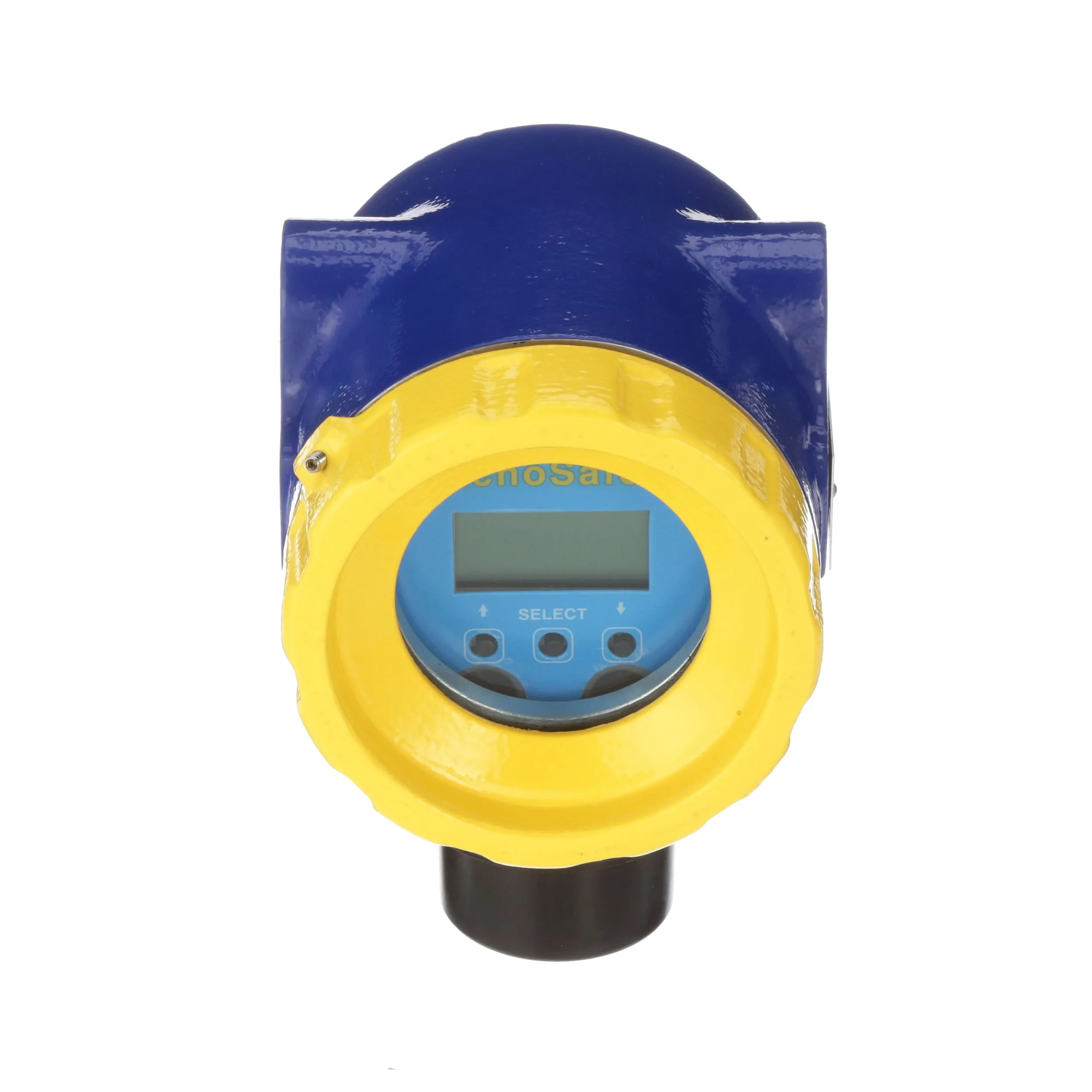

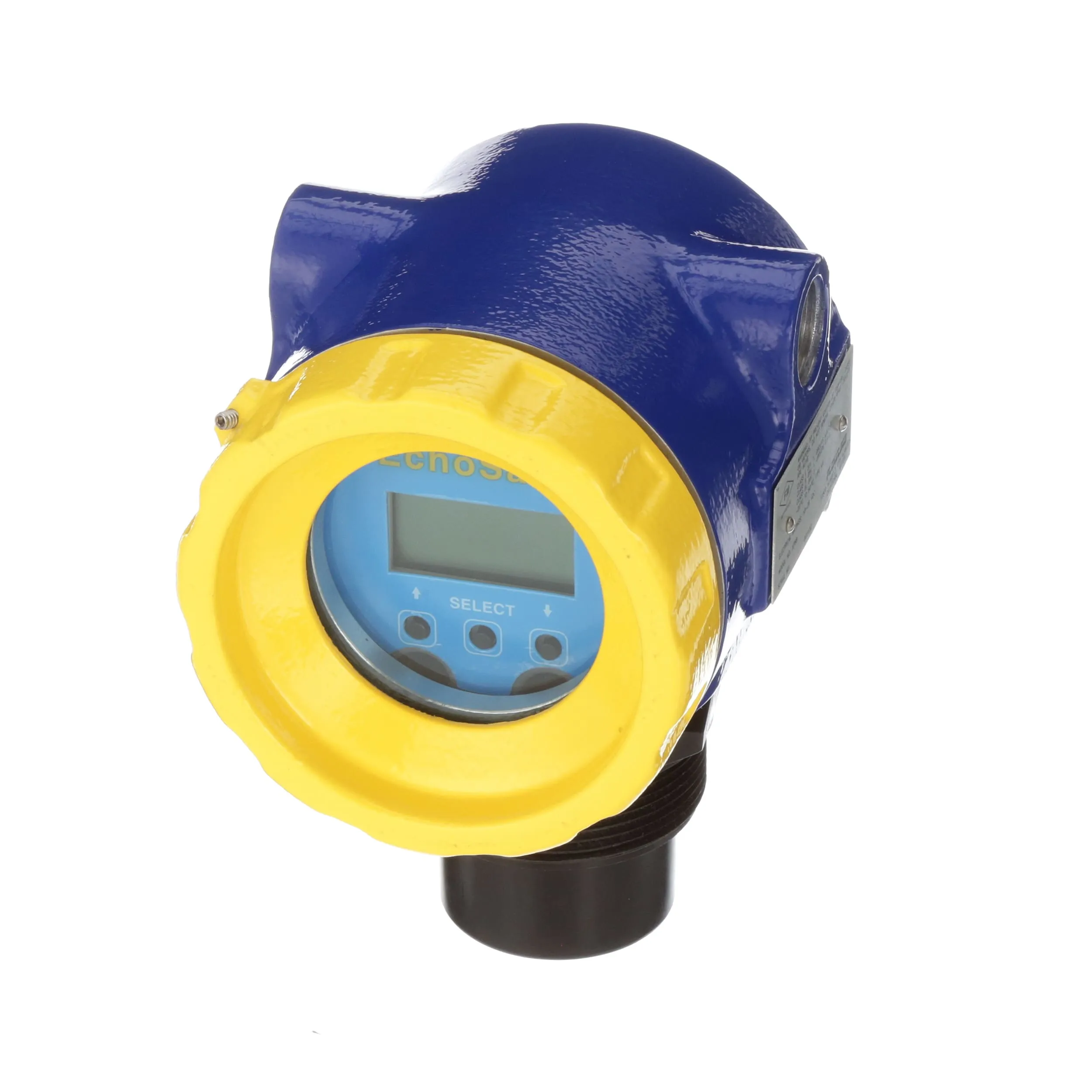

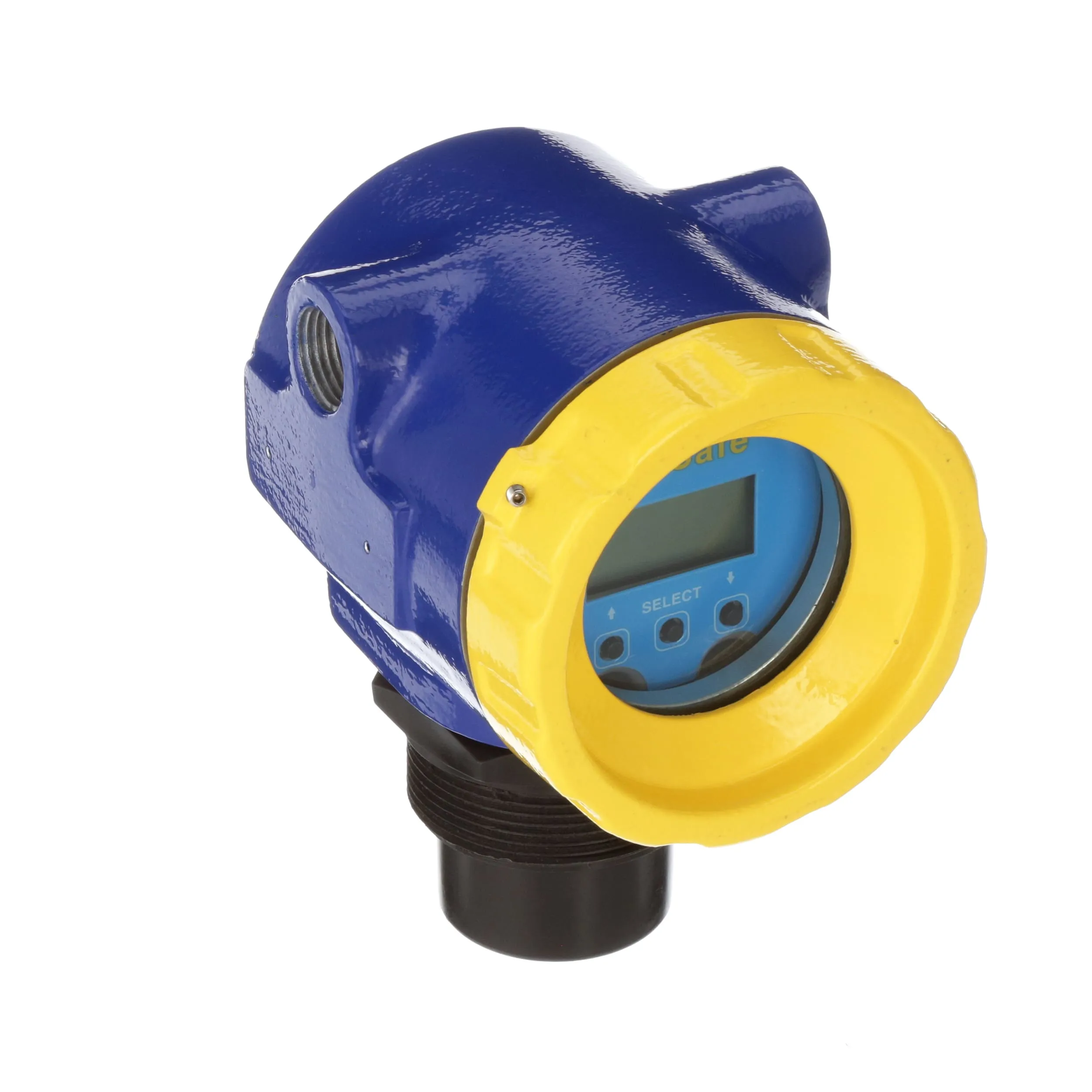

EchoSafe® Ultrasonic Level Transmitter. FM approved for hazardous environments, the explosion proof ultrasonic level transmitter provides continuous level measurement up to 32.8' (10 m) with a 4-20 mA signal output, and is configured via the integral push button display module. This non-contact liquid level sensor is ideally suited for corrosive, ultrapure, sticky or dirty liquids, and is widely selected for bulk storage, day tank, lift station and process tank level applications located in a classified area.
Features:
