Description:

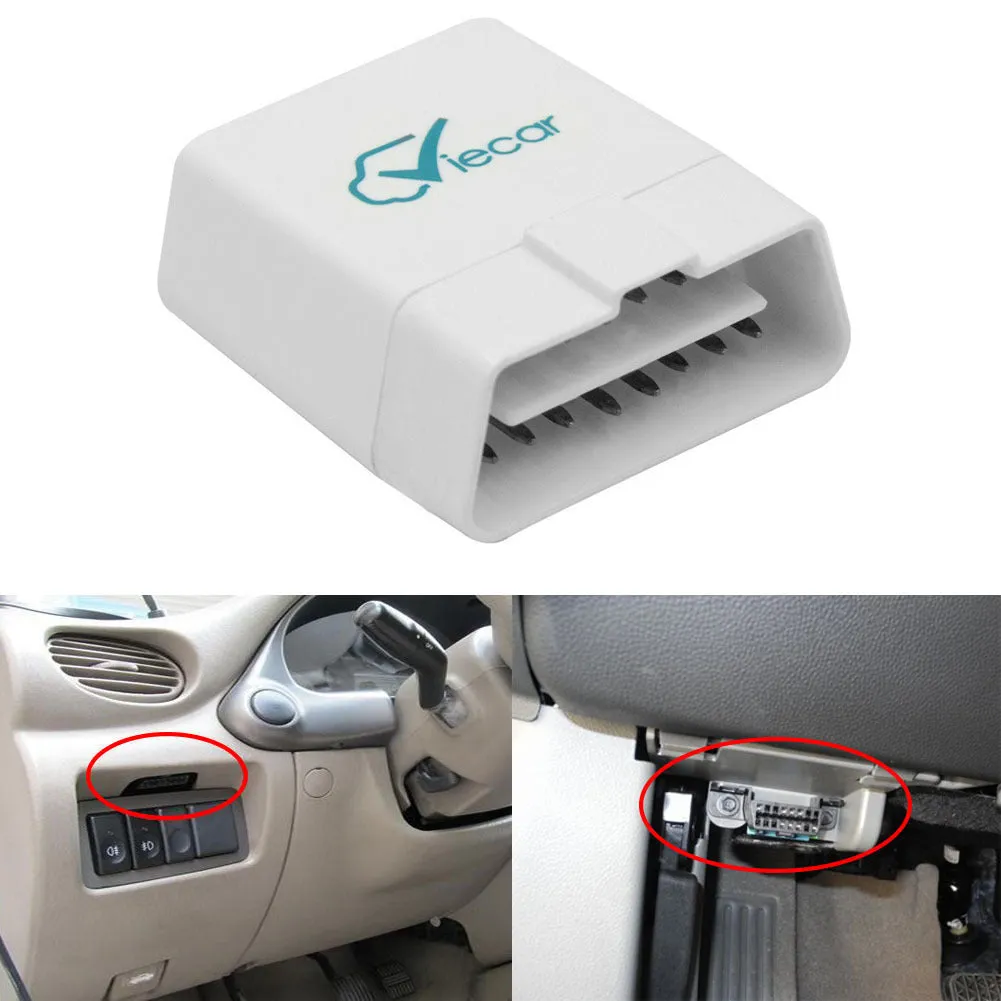

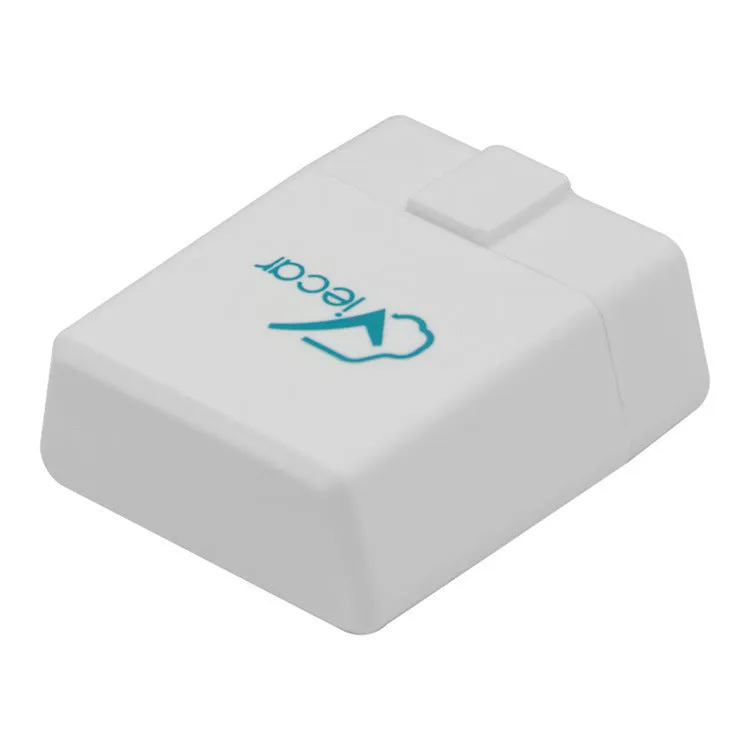

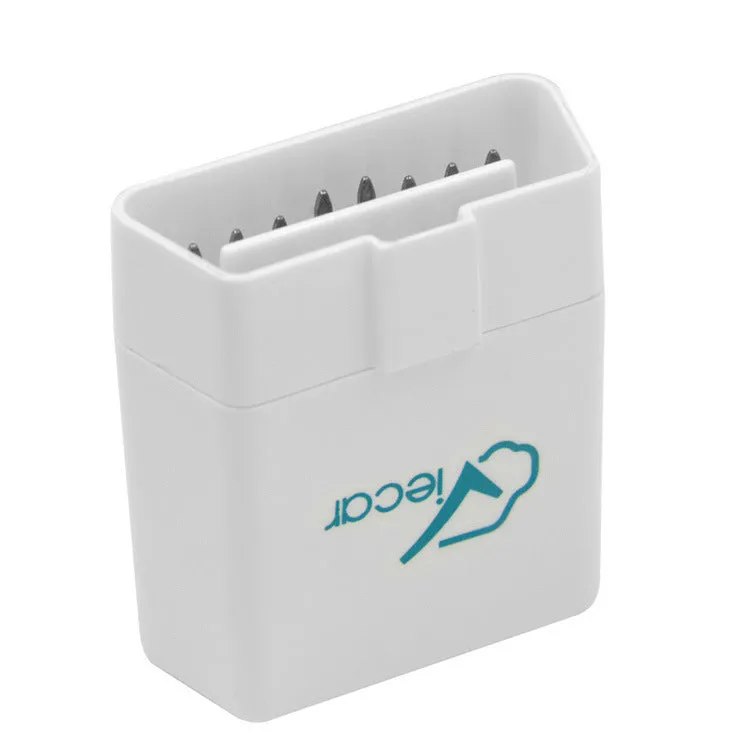

Type: Viecar 4.0 Bluetooth

Product Parameters

1. Communication method: Bluetooth dual-mode (2.0/4.0)

2. Software platform: Support Android / IOS / Windows

3. Operating voltage: 9V~16V

4. Operating current: 45mA

5. Operating temperature: -40℃~85℃

6. Operating humidity: <60%

7. Dimensions: 45mm*40mm*18mm

8. Supported vehicle: OBDII protocol vehicle

Supports OBDII protocols:

SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

Software features:

Software can perform the following operations:

Read error diagn

ostic codes - General and manufacturers special use, and display their meaning

(Database has over 3000 generic code definitions)

Clear the error code and shut off the MIL ( "Check Engine" light)

Display current sensor data, comprising:

Engine revolutions p

er minute (RPM)

The calculated load value

Coolant temperature

Fuel System Status

Speed

Short-term fuel situation

Long-term fuel situation

Intake manifold pressure

Injection advance time

Intake air temperature

Air flow rate

Absolute throttle position

Oxygen-sensing voltage associated with the short-term fuel state

Packing Includes:

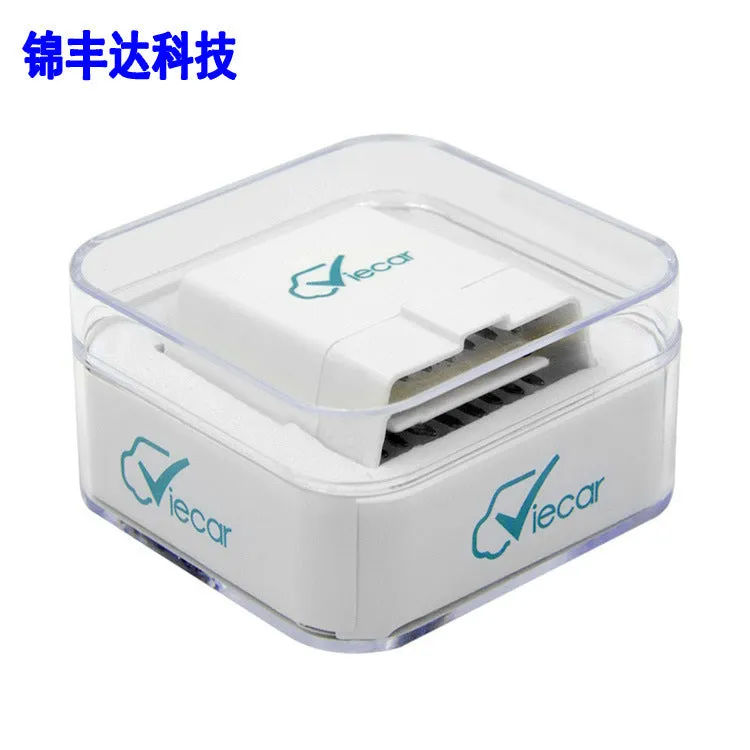

1 X Viecar 4.0 Bluetooth

1 X User Manual

Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
