Features:

• 1.5 MHz video bandwidth, ideal for Bluetooth® and cdmaOne applications
• Fast measurement speed, up to 1000 corrected readings per second, via the GPIB
• Wide dynamic range
• Calibration factors, linearity, temperature and bandwidth correction stored in EEPROM
• Precision type-N connector as standard
• Operates with the EPM-P (E4416A/ 17A) series and P-Series (N1911A/ 12A) power meters

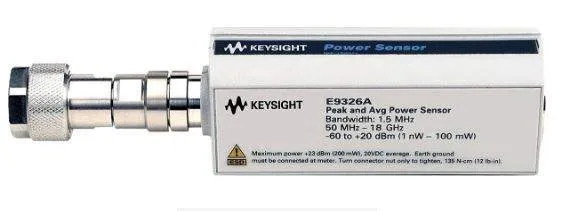

The E9326A power sensor has a 1.5 MHz video bandwidth and is ideal for time-gated peak, average and peak-to-average ratio power measurements on TDMA and CDMA wireless formats such as Bluetooth.

Peak/Average Power Sensor (50 MHz - 18 GHz; 1.5 MHz Video Bandwidth)

The E-Series E9320 power sensors have two frequency ranges. The E9325A, E9326A, and E9327A have a frequency range of 50 MHz to 18 GHz while the 50 MHz to 6 GHz range of the E9321A, E9322A, and E9323A covers most wireless communication applications.
