Features:

• Measure the average power of all modulation formats
• Wide dynamic range (-60 dBm to 20 dBm) and frequency range 10 MHz to 18 GHz
• High maximum power specification
• Low SWR for reducing mismatch uncertainty
• Calibration factors, linearity and temperature compensation data stored in EEPROM
• Fast measurement speeds (up to 400 readings per second with the E4416A)
• Compatible with EPM (N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters

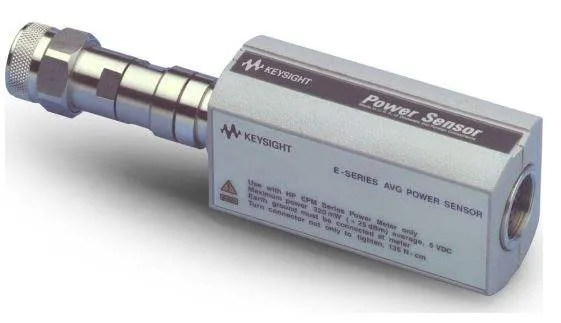

The E9300A power sensor measures average power over the frequency range 10 MHz to 18 GHz and power range -60 to 20 dBm (80 dB dynamic range)

E-Series Average Power Sensor (10 MHz to 18 GHz)

The Keysight E-Series E9300 is a wide dynamic range, with average power sensors. These sensors are compatible with EPM (N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters.
