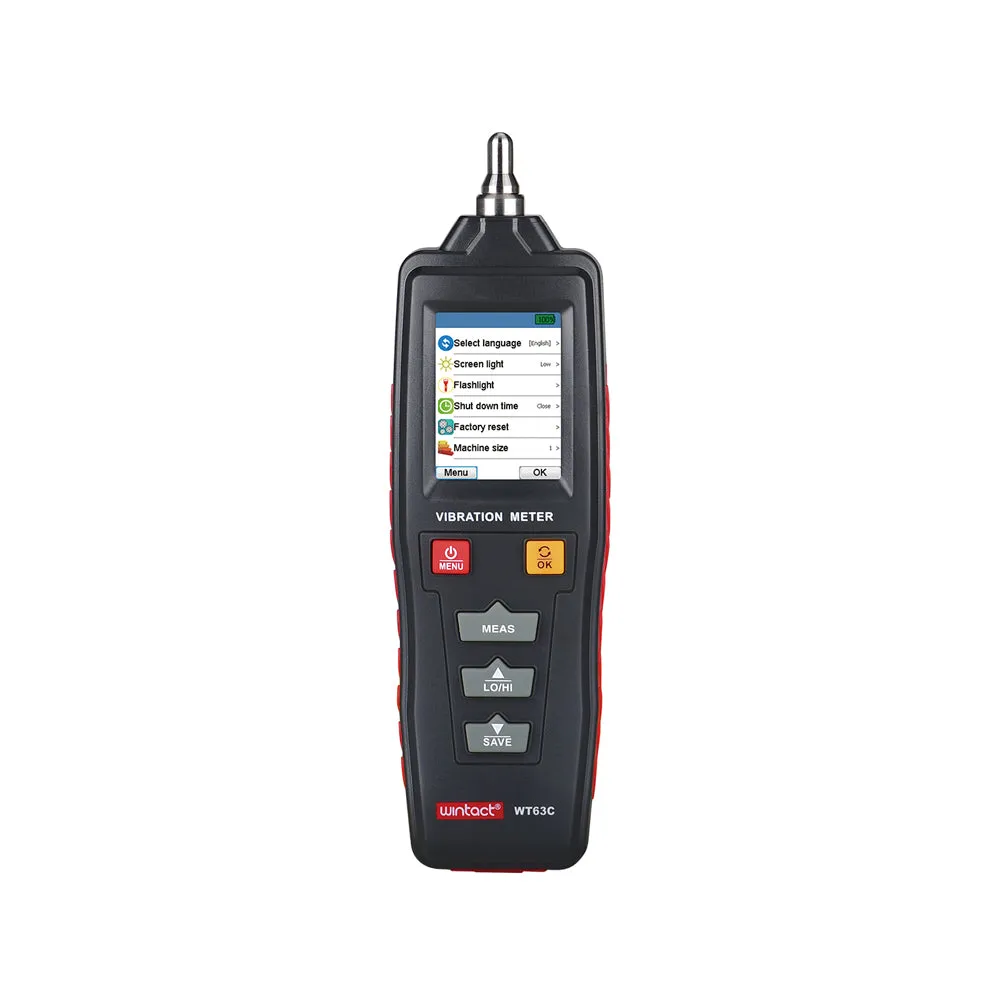

Description:
This product is based on piezoelectric effect of artificially polarized ceramics. It is suitable for conventional vibration measurement of mechanical equipment, especially for rotating and reciprocating machinery. It can measure vibration acceleration,velocity,displacement and frequency, and is widely used in fields like machinery manufacturing, electric metallurgy and general aerospace.

Features:

• Acceleration/Velocity/Displacement;
• Screen flipping;
• Switch acceleration measurement between high and low frequency;
• high frequency (1KHz~4KHz) /low frequency (10Hz~1KHz)
• Curve display;
• Store and view files;
• Power indicator;
• Double measurement button;
• Flashlight;
• Brightness control;
• Select Chinese/English;
• Shutdown time setting;
• Selection of machine level;
• Measurement of vibration frequency.

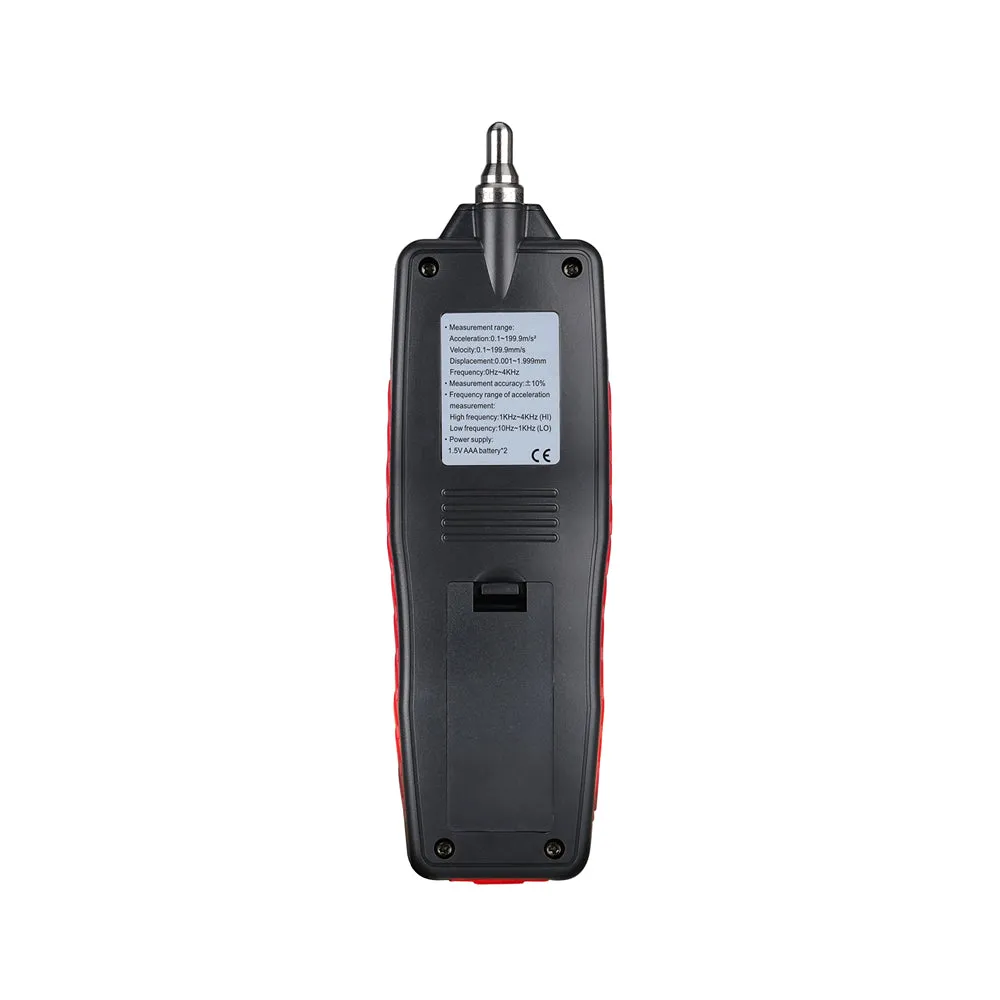

Specifications:

Technical parameters: Technical indicators

Vibration acquisition: Piezoelectric ceramic accelerometer (shear type)

Measurement range:
Acceleration：0.1~199.9m/s2 Velocity：0.1~199.9mm/s Displacement：0.001~1.999mm Frequency:0Hz~4KHz

Measurement accuracy: ±10%

Frequency range of acceleration measurement:
High frequency：1KHz～4KHz (HI) Low frequency：10Hz～1KHz ( LO)

Frequency range of speed measurement: 10Hz～1KHz (LO)

Frequency range of displacement measurement: 10Hz～1KHz (LO)

Maximum groups of data storage: 500 pieces (5 groups * 100 pieces/group)

Power supply: 1.5V AAA battery*2

Temperature range for operation: 0~40℃

Humidity range for operation: 30~90%RH
