The AS5600 Magnetic Encoder is a high-precision magnetic induction angle measurement sensor module. It is designed to measure the angle of a rotating object accurately using magnetic sensing technology.
Magnetic Angle Measurement: The AS5600 is specifically designed to measure angles accurately using magnetic field sensing. It can measure angles in both absolute and incremental modes.
High Precision: This sensor module offers high precision, typically with 12-bit resolution, allowing it to provide precise angle measurements with a high degree of accuracy.
Digital Output: The AS5600 provides a digital output in various formats, such as I2C or SPI, making it easy to interface with microcontrollers and digital circuits.
Non-Contact Sensing: Magnetic sensing does not require physical contact with the rotating object, making it suitable for applications where contact-based sensors may not be ideal.
Programmable: The AS5600 often allows for programming and calibration, enabling customization of the measurement range, zero position, and other parameters to suit specific applications.
Feedback Systems: It is used as part of a feedback system to monitor and control the position of rotating components, such as motors and shafts.
Throttle Position Sensing: In automotive applications, the AS5600 can be used to measure throttle position in electronic throttle control systems.
Joystick and Knob Controls: It can be incorporated into user interface devices like joysticks and rotary knobs to provide accurate angle or position feedback.
Here are some key features and details about the AS5600 Magnetic Encoder:
Features and Specifications:Magnetic Angle Measurement: The AS5600 is specifically designed to measure angles accurately using magnetic field sensing. It can measure angles in both absolute and incremental modes.
High Precision: This sensor module offers high precision, typically with 12-bit resolution, allowing it to provide precise angle measurements with a high degree of accuracy.
Digital Output: The AS5600 provides a digital output in various formats, such as I2C or SPI, making it easy to interface with microcontrollers and digital circuits.
Non-Contact Sensing: Magnetic sensing does not require physical contact with the rotating object, making it suitable for applications where contact-based sensors may not be ideal.
Programmable: The AS5600 often allows for programming and calibration, enabling customization of the measurement range, zero position, and other parameters to suit specific applications.
Common Applications:
Rotary Position Sensing: The AS5600 Magnetic Encoder is commonly used in applications where precise rotary position sensing is required. It can be used in robotics, automation, industrial machinery, and automotive systems.Feedback Systems: It is used as part of a feedback system to monitor and control the position of rotating components, such as motors and shafts.
Throttle Position Sensing: In automotive applications, the AS5600 can be used to measure throttle position in electronic throttle control systems.
Joystick and Knob Controls: It can be incorporated into user interface devices like joysticks and rotary knobs to provide accurate angle or position feedback.
Technical Details
- Power Supply: 3.3V DC.
- 12-bit DAC output resolution
- Non-contact magnetic induction angle measurement module.
- High precision, a variety of output modes: IIC, PWM, and voltage.
- Temperature Range: -40 to 125°c
Product Video
Physical Attributes

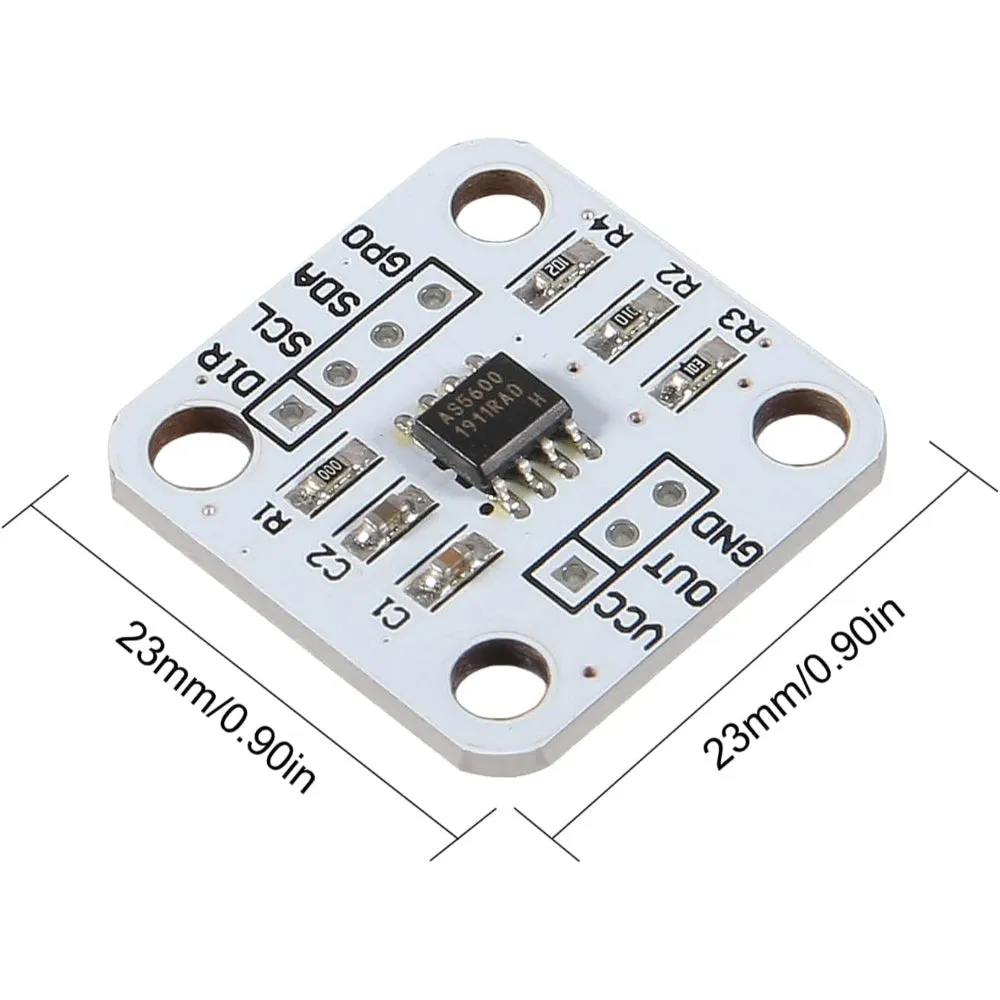

- L x W x H (mm): 23 x 23 x 12
- Weight (gm): 8
Package Includes
- 1 x AS5600 Magnetic Encoder 12bit High-Precision Magnetic Induction Angle Measurement Sensor Module to Send Magnets
