Product Description

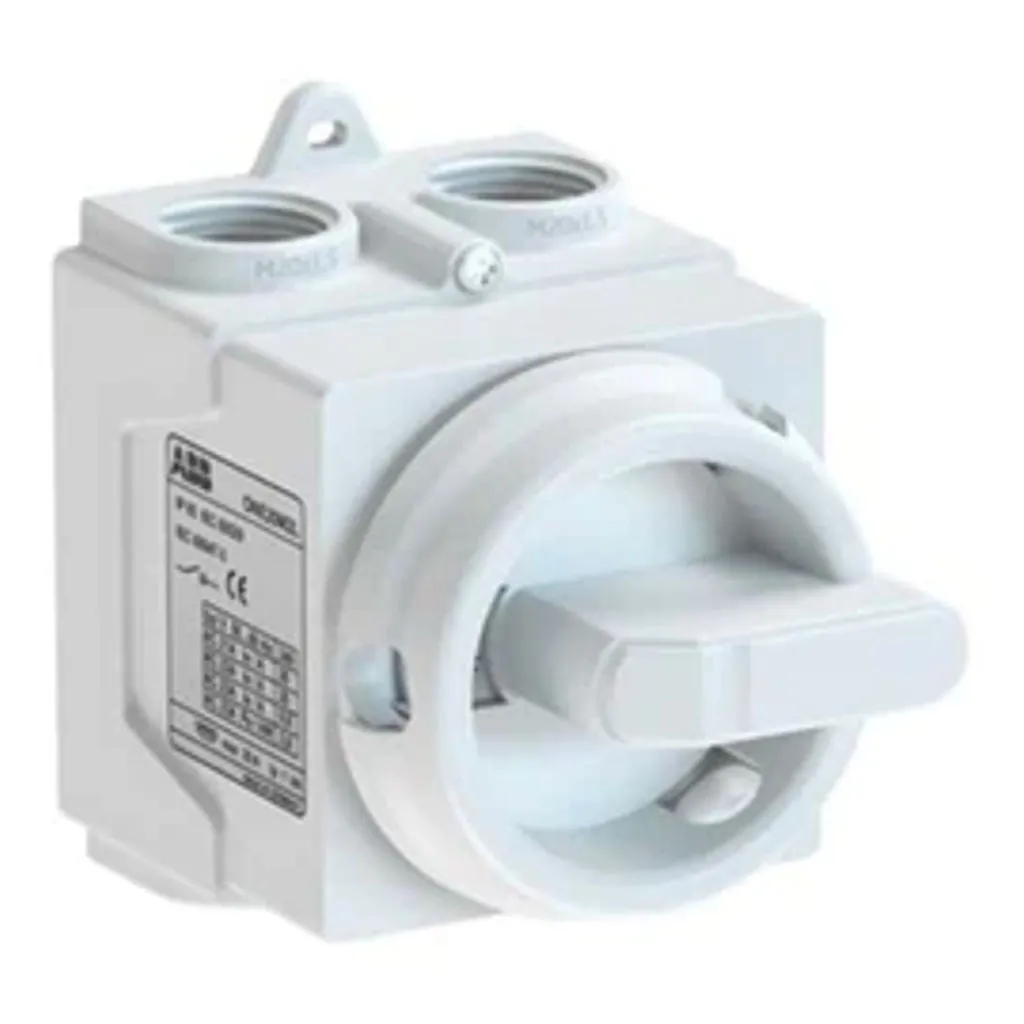

• Enclosed Switch Disconnector, 400V AC22 20A, Plastic enclosure, White Round handle

• ONE20 switches can be used as main switches or for local isolation in various applications, such as HVAC, residential water pumps and heat pumps or commercial lighting

• High quality

• ABB is synonym of quality: each ONE20 switch is tested and approved at the factory. The enclosures are made of durable materials with high UV resistance, which makes it suitable for indoor or outdoor use

• Reduced installation time

• Compression glands are included in the delivery. They can be easily installed on the threaded knock-out cable entry

• Simple and modern design

• The enclosure is compact and has the same size for 2, 3 and 4 pole types. ONE20 is available in three colors

• Maximized safety

• The handle can be padlocked in the OFF position with up to three padlocks and in ON position with one padlock

• Product Net Width : 65 mm

• Product Net Height : 92 mm

• Product Net Depth : 84 mm

• Product Net Weight : 0.11 kg

• Conventional Thermal Current (I_the) : Fully Enclosed 20 A

• Rated Insulation Voltage (U_i) : acc. to IEC/EN 60664-1 690 V

• Power Loss : at Rated Operating Conditions per Pole 0 W

• Handle Color : White

• Handle Type : Round handle

• Cable Cross-Section : 4 mm²

• Cable Entry Position : Up/Down

• Cable Outlets Per Side : 2xM20 / 2xM20

• Degree of Protection : acc. to IEC 60529 IP67

• Enclosure Material : Plastic
