Product Description

• Degree of Protection : acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

• Maximum Electrical Switching Frequency : 1200 cycles per hour

• Maximum Mechanical Switching Frequency : 3600 cycles per hour

• Mounting on Contactors : A 9...A 75

• Mounting Position : Front face

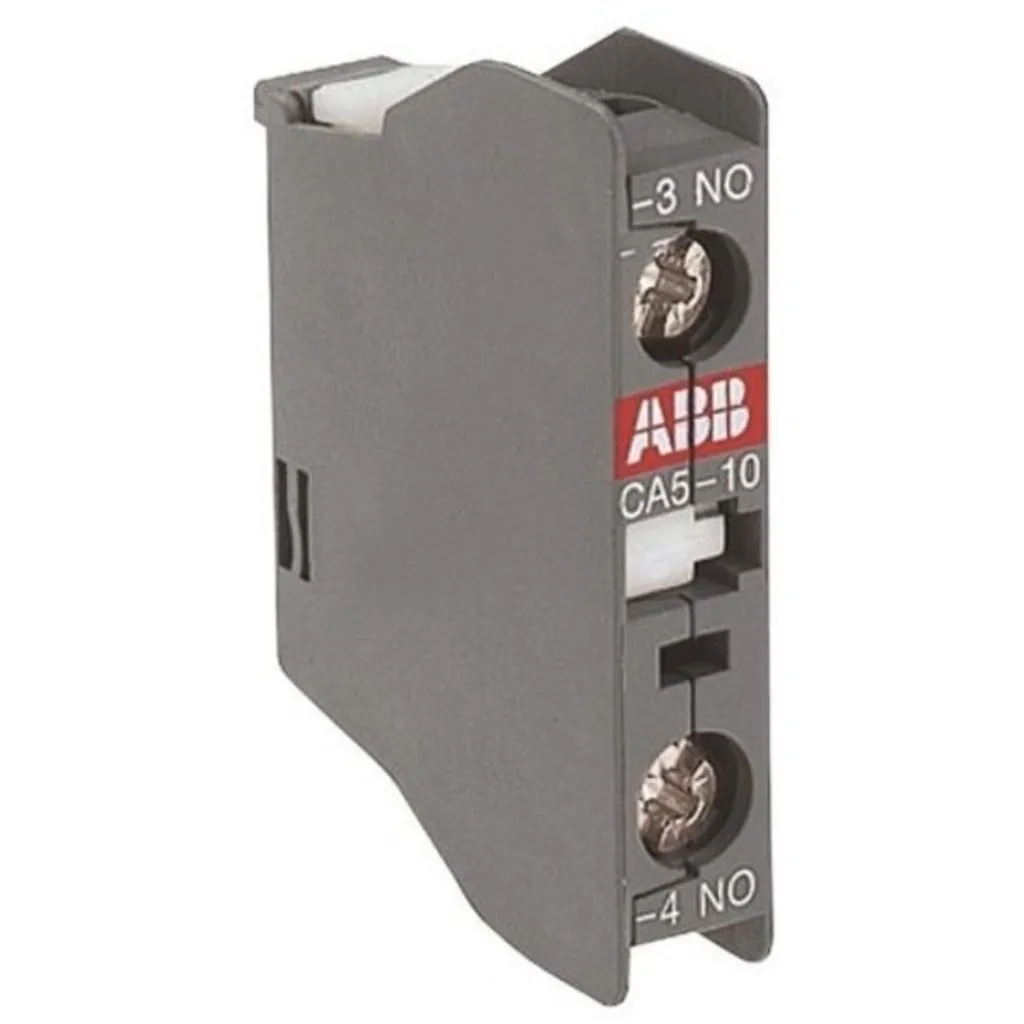

• Product Name : Auxiliary Contact Block

• Rated Breaking Capacity acc. to IEC 60947-5-1 : 10 x Ie AC-15

• Rated Frequency (f) : Supply Circuit 50 Hz , Supply Circuit 60 Hz

• Rated Making Capacity acc. to IEC 60947-5-1 : 10 x Ie AC-15

• Product Net Width : 11 mm

• Product Net Height : 47 mm

• Product Net Depth / Length : 32.5 mm

• Product Net Weight : 0.014 kg
